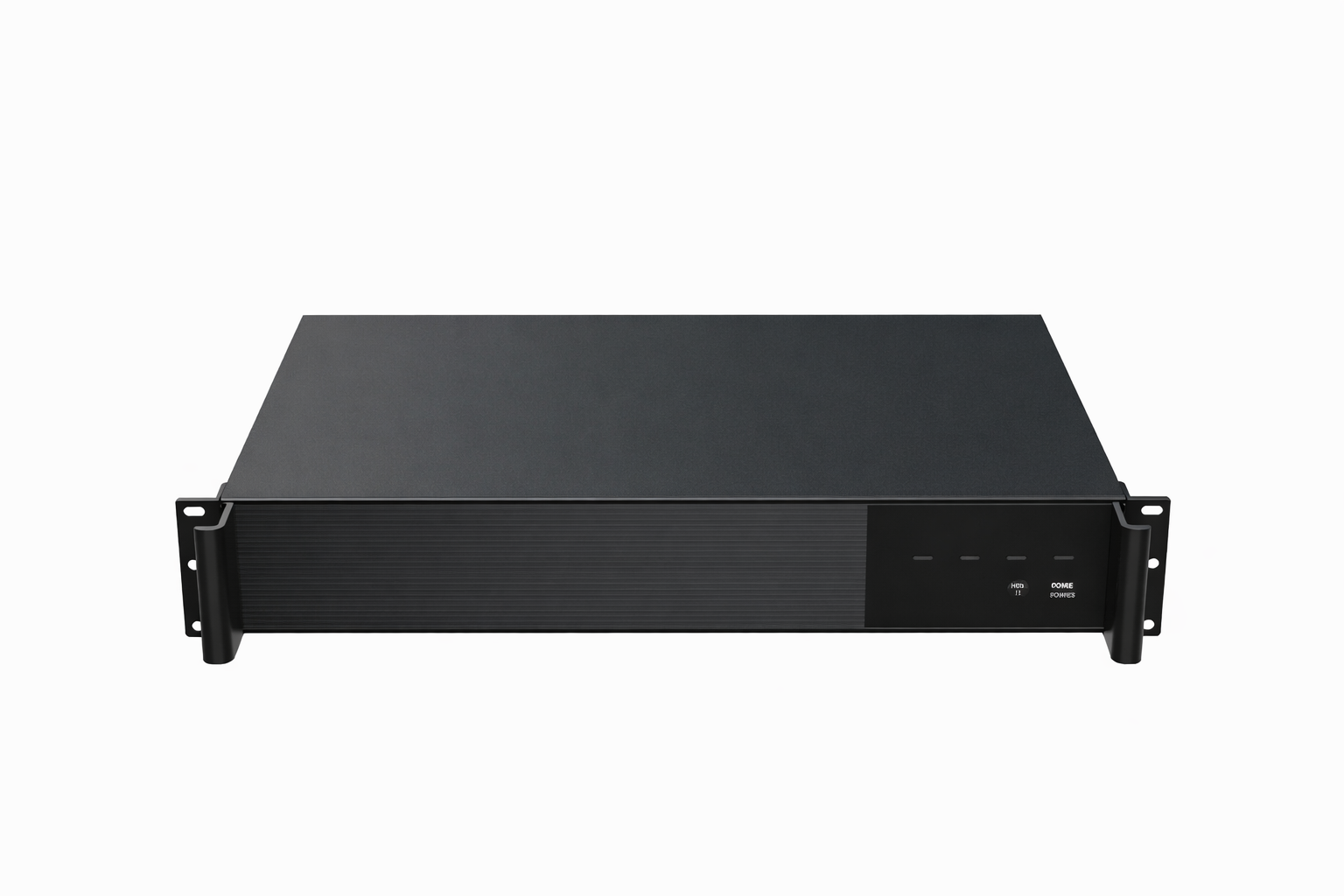

The OCB-L NVR4664K8P16 is an ultra-high-end enterprise Network Video Recorder designed for large-scale infrastructure and high-security environments.
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$750.00
-100%
Regular price
Regular price
$750.00
Unit price
per
The OCB-L NVR4664K8P16 is an ultra-high-end enterprise Network Video Recorder designed for large-scale infrastructure and high-security environments.
Sale price
$750.00
Regular price
Regular price
$750.00
Unit price
per
Couldn't load pickup availability
The OCB-L NVR4664K8P16 is an ultra-high-end enterprise Network Video Recorder designed for large-scale infrastructure and high-security environments. With support for up to 64 IP channels and 8 SATA interfaces, it serves as a massive storage and management hub for extensive surveillance networks. It features a built-in 16-port PoE switch, providing a hybrid connectivity solution that combines direct camera power with extensive network scalability for the remaining channels.
Product Features
64CH 16CH POE 4K NVR
- Input: Max. 64CH;
- support (two-way) Audio;
- HD Output:4K(3840x2160)
- Video Compression : H265/H264/H265+/H264+
- 16x Independent 100Mbps POE Network Interfaces
System & Video Performance
Main Processor: Quad Core Cortex A53 / Embedded LINUX
IP Video Input: 64 Channels (16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p / D1)
Video Output: 2x HDMI (HDMI1 4K: 3840*2160, HDMI2 1080p), 1x VGA (1080p)
Bandwidth: Incoming: 384Mbps / Outgoing: 256Mbps
Compression: H.265 / H.265+ / H.264 / H.264+
Audio, Alarm & Event
Audio I/O: 1x RCA Input / 1x RCA Output (Two-way Intercom supported)
Alarm I/O: 16-Channel Sensor Input / 4-Channel Alarm Output
Smart Events: Face Detection/Recognition, Intrusion, Line Crossing, Enter Area, Leave Area, Loitering, People Gathering, Illegal Parking, Line Crossing Count, LPD/LPR, Abandoned/Removed Object, Heat Map
Motion Detection: 64 Channels (396 Zones) with Trigger Events (Recording, Email, FTP, Snapshot, Buzzer, Notify Center, Alarm Out)
Recording & Playback
Local Playback: 1CH 16MP@25fps / 2CH 12MP@30fps / 4CH 8MP@30fps / 16CH 1080P@30fps
Decode Capability: 1080P @ 480fps
Search Mode: Video, Picture, Event, Pedestrian, Vehicle, Face, License Plate
Network & PoE Interface
PoE Interface: 16x Independent 100Mbps POE Ports (Plug & Play)
PoE Budget: Total Power Output ≤ 200W (Support for Extended Mode up to 200m)
Network Interface: 1x RJ45 (10M/100M/1000M Adaptive Ethernet)
Onvif: Profile S, Profile T, Profile G
Storage & Physical
Storage Type: 8x SATA Hard Disk Interfaces (3.5") / 1x eSATA
Max Capacity: Up to 10TB for each HDD (80TB Total)
USB Interface: Front panel: 2x USB 2.0; Rear panel: 1x USB 3.0
Dimensions: 440 x 428 x 90 (mm)
Weight: 7.63 kg (without HDD)
Power Source: 100-240V AC, 50/60Hz ≤ 20W (Without HDD/PoE)
