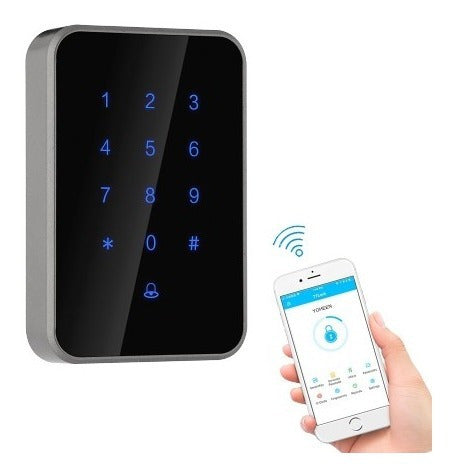

The OCB-T22MF Wifi Bluetooth access control and reader

The OCB-T22MF(WIFI) – WiFi & Bluetooth MIFARE Access Control Keypad

The OCB-T22MF(WIFI) is a standalone WiFi and Bluetooth-enabled access control keypad supporting up to 2,000 users with MIFARE 13.56MHz card technology. Featuring a touch backlit keypad, ultra-fast authentication (<20ms), and multiple operation modes, it provides flexible and secure access management for professional installations.

Product Features

• WiFi & Bluetooth connectivity
• Supports 2,000 users
• Access methods: MIFARE Card / PIN / Card + PIN
• Full programming via touch keypad
• Touch backlight keys for enhanced usability
• Standalone keypad operation
• Standalone access control mode
• Toggle relay mode & reader mode
• Data transconductance function
• Adjustable door output time
• Very low power consumption (30mA)
• Fast response speed (<20ms with 2000 users)
• Lock output short-circuit protection
• LED status indicators (Red, Yellow, Green)
• Operating voltage: DC 12V ±10%
• MIFARE 13.56MHz card frequency

Product Advantages

• Secure MIFARE technology enhances access protection
• Wireless connectivity simplifies configuration and management
• Touch backlit keypad improves visibility in low light
• Multiple operation modes support flexible deployments
• Low power design ensures stable long-term operation
• Built-in protection increases system reliability

Professional Applications

Ideal for:
• Office buildings
• Residential complexes
• Retail environments
• Warehouses
• Educational institutions
• Controlled access doors
