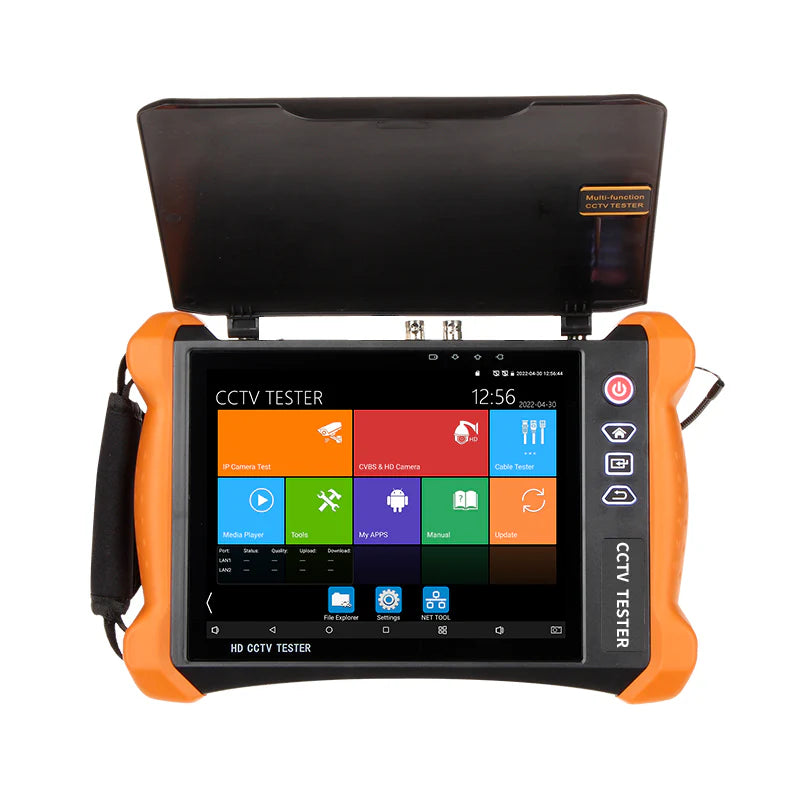

The OCB-X9-ADH 5 in 1 tester , ? 8 inch retina touch screen, 2048*1536 resolution
Sale price
$792.06
Regular price
Regular price
$792.06
Unit price
per
Couldn't load pickup availability
The OCB-X9-ADH is a professional multi-function CCTV and network tester designed for video surveillance installers, low voltage technicians, and security integrators. Built to simplify installation, maintenance, and troubleshooting tasks, this advanced tester supports IP, analog, TVI, CVI, and AHD cameras up to 8MP resolution.
Equipped with an 8-inch high-resolution Retina touch screen, built-in WiFi, HDMI input/output, ONVIF support, PTZ control, PoE testing, cable diagnostics, and power output functions, the OCB-X9-ADH delivers a complete all-in-one solution for field technicians working with modern surveillance systems.
Its rugged portable design, long-lasting rechargeable battery, integrated browser, and advanced network testing tools make it ideal for configuring cameras, troubleshooting network issues, testing video signals, and powering devices directly on-site. The OCB-X9-ADH is engineered to improve installation efficiency, reduce downtime, and optimize professional security deployments.
Network & Connectivity
Network Interface: RJ45 Dual Gigabit Ethernet Ports, 10/100/1000Mbps Adaptive
Wi-Fi: Built-in WiFi, 2.4GHz & 5GHz, Speed up to 433Mbps
Network Test: Trace Route, Link Monitor, DHCP Server, Port Flashing, Ping Test
PoE Test: Measures PoE Switch or PSE Voltage and Cable Connection Status
Audio & Data Functions
Audio Test: 1 Channel Audio Signal Input and Output for Sound Testing and Headphone Connection
Data Monitor: Captures and Analyzes Control Device Command Data, Supports Hexadecimal Sending
TesterPlay: Screen Projection for Tester, Mobile Phone, and PC Simultaneously (Android Only)
Interface & System Features
Drop-down Menu: Quick Access to PoE Switch, IP Settings, WLAN Switch, HDMI IN Functions, and More
Operation Settings: OSD Menu with Multi-language Support including English, Spanish, French, German, Japanese, Korean, Portuguese, Turkish, Vietnamese, and More
Auto Off: Adjustable from 1 to 30 Minutes
Power & Battery
Power Supply: DC12V / 2A
Battery: Built-in 7.4V Lithium Polymer Battery, 7000mAh, 51.8Wh
Rechargeable: 3 to 4 Hours Charging Time with up to 15 Hours Working Time
Environmental & Physical Specifications
Working Temperature: -10℃ to +50℃ (14℉ to 122℉)
Working Humidity: 30% to 90%
Tester Dimensions / Weight: 260 × 183 × 43 mm (10.23 × 7.2 × 1.69 in) / 1200g (2.65 lbs)
Package Dimensions / Weight: 350 × 300 × 100 mm (13.78 × 11.81 × 3.94 in) / 2740g (6.04 lbs)
