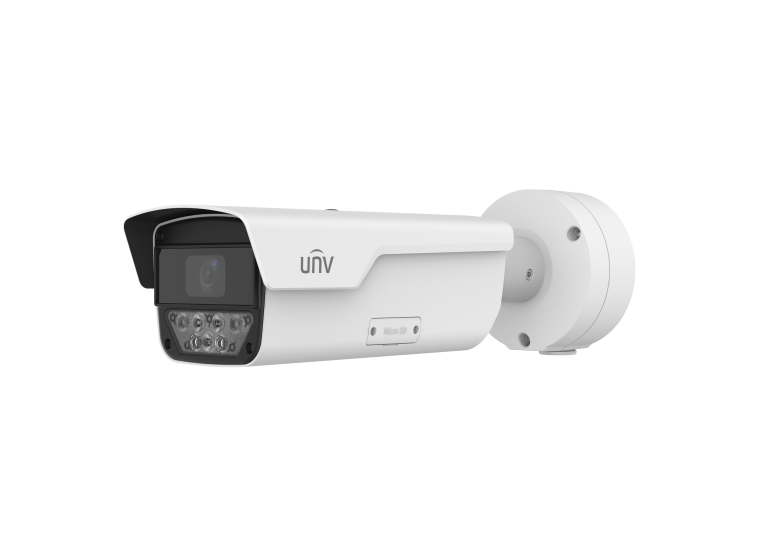

The PKC2641-Z80-P is a professional 4MP License Plate Recognition bullet IP camera designed for vehicle access control, parking entrances, gated communities, commercial facilities, and intelligent traffic monitoring applications.

Image Sensor: 1/1.8-inch 4MP CMOS

Focal Length: 8 to 32mm

Shutter: Auto, range: 1/500 to 1/100000s

Minimum Illumination: 0.002 lux @ F1.7

Field of View: Horizontal: 42° to 15.5° | Vertical: 23.1° to 8.8° | Diagonal: 48.5° to 18.3°

WDR: 120 dB

S/N Ratio: > 50 dB

Image Collection Format: 2688 × 1520 @ 60fps, 50fps, 30fps default, 25fps

Frame Rate: 60, 50, 30 default, 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1fps

Video Compression: H.264 default, H.265

ROI: Supports up to 8 regions

Image Enhancement: HLC, BLC, Digital Defog, 3D DNR

Video OSD: Supports 8 overlay areas with date, time, date & time, zoom ratio, and custom contents

Image OSD: Supports 8 overlay areas with time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents, and location

Resolution: Main Stream: 2688 × 1520, 1080P default, 720P, D1 | Sub Stream: 720P default, D1, 2CIF, CIF | Third Stream: D1 default, 2CIF, CIF

Application Scenario: Regular roads up to 80 km/h. The 8 to 32mm focal length is suitable for regular road applications

Vehicle Detection Mode: Supports video detection

License Plate Recognition: Supports recognition of license plates with numbers and letters by default

List Configuration: Supports allowlist and blocklist configuration, with up to 20,000 items per list. Supports import, export, add, and delete operations

Barrier Opening Policy: Open barrier only for recognized vehicles, all vehicles, allowlist vehicles, or vehicles not on the blocklist. Configurable Boolean output ID

Supported Countries & Regions: United States, Canada, Mexico, Brazil, Argentina, United Kingdom, France, Spain, Portugal, Germany, Italy, Netherlands, Sweden, Australia, New Zealand, Saudi Arabia, UAE, Qatar, Singapore, Malaysia, Indonesia, Thailand, India, South Korea, Turkey, and more

Vehicle Type Recognition: Car, Van, Large Bus, Medium Bus, Heavy Truck, Light Truck, SUV, MPV, Pickup, Motorcycle

Vehicle Color Recognition: Red, Yellow, Green, Blue, Purple, Pink, Brown, White, Grey, Black, Silver, Orange

Vehicle Manufacturer Recognition: Supports recognition of 133 vehicle manufacturers including Audi, BMW, Chevrolet, Ford, Honda, Hyundai, Kia, Lexus, Mazda, Mercedes-Benz, Nissan, Porsche, Tesla, Toyota, Volkswagen, Volvo, and more

Edge Storage: Supports ANR with Micro SD card, up to 512GB

Illumination: Built-in illumination module with 5 warm light LEDs or 5 IR LEDs, 50m illumination distance, automatic on/off control

Bracket: 3-axis mounting bracket

Junction Box: Camera includes a junction box for storing tail cable

Protocols: IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4

Compatible Integration: ONVIF Profile S, Profile G, Profile T, SDK, API

Network Interface: 1 × 10M/100M RJ45

Serial Port: 2 × RS485

Boolean Output: 2 relay outputs, withstand voltage: AC 125V/0.3A, DC 30V/1A

Boolean Input: 2 inputs, supports level up to DC 5V and switch signal

Audio Interface: 1 × audio input, 1 × audio output

Storage Interface: 1 × Micro SD card slot

Reset Button: Supported

Wiegand Interface: Supports Wiegand output

Weight: 1.91 kg

Ingress Protection: IP67, IK10

Power Supply: DC 12V ±25%, PoE 802.3at Class 4

Power Consumption: Max. 20W

Dimensions: 406 mm × 126 mm × 130 mm

Operating Environment: -40℃ to 60℃, ≤90% RH

Heater: N/A

NDAA Compliant: Supported

EMC: CE-EMC EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014, FCC CFR 47 Part 15 B, ANSI C63.4 2014

Safety: EN IEC 62368-1:2020+A11:2020, UL 62368-1 2nd Ed.

Environment: CE-RoHS 2011/65/EU, EU 2015/863, WEEE 2012/19/EU

Protection: IP67 IEC60529, IK10 IEC 62262
