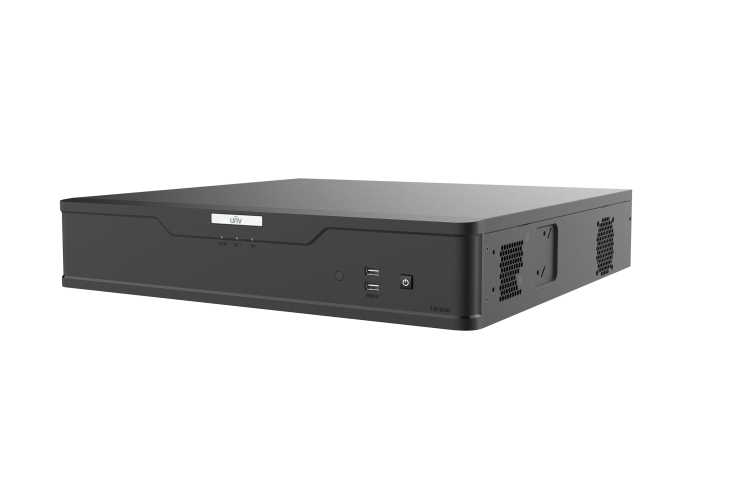

The XVR304-32Q3 is a professional 32-channel hybrid video recorder designed for medium to large surveillance installations that require flexibility, high storage capacity, and reliable video management.

IP Video Input: 4-ch

Analog Video Input: 32-ch, BNC

Max IP Video Input: 36-ch

Supported Camera Types: AHD: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps | TVI: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps | CVI: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps | CVBS: Supported

BNC Audio Input: 32-ch, channel audio

RCA Audio Input: 1-ch

HDMI Output: HDMI1: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | HDMI2: 4K 3840 × 2160/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

BNC Video Output: 1-ch

RCA Audio Output: 1-ch

Live View Display: HDMI/VGA: 1/4/6/8/9/16/25/36

Playback Screen: 1/4/9/16

Recording Resolution: 8MP Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1

Recording Frame Rate: 8MP Lite: Main Stream @8fps, Sub Stream D1@8fps | 5MP Lite: Main Stream @12fps, Sub Stream D1@12fps | 4MP Lite: Main Stream @15fps, Sub Stream D1@15fps | 1080P: Main Stream @15fps, Sub Stream D1@15fps | 720P: Main Stream @30fps, Sub Stream D1@30fps

Decoding Capability: Analog: 32 × 8MP Lite@8, 32 × 5MP Lite@12, 32 × 4MP Lite@15, 32 × 1080P@25, 32 × 720P@30 | IP: 2 × 8MP@30, 4 × 4MP@30, 8 × 1080P@30, 16 × 720P@30, 36 × D1

Concurrent Local Playback: 16-ch

Audio Sample Rate: 8 kHz, 16 bit per channel

Audio Bit Rate: 64 Kbps per channel

Audio over Coaxial Cable: 32-ch, one-way audio with TVI and Uniview CVI protocol cameras

Two-way Audio: 1-ch, RCA using audio input and output

FTP / Schedule / Event Snapshot: 32-ch snapshot, up to 704 × 576 resolution

Incoming Bandwidth: 160 Mbps, up to 224 Mbps after all analog channel conversion

Outgoing Bandwidth: 160 Mbps

Remote Users: 128

Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6

Browser Support: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Analog Smart by XVR: Ultra Motion Detection (UMD), SIP, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Face Detection

IP Smart by IPC: Face Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area

VCA Search: Face Search, Behavior Search

Smart Functions by XVR: 16-ch UMD, 8-ch SIP, 2-ch Face Detection

Smart Functions by IP Camera: 8-ch SIP

General Alarm: Motion

Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

Alarm Input: 16-ch

Alarm Output: 6-ch

SATA: 4 SATA interfaces

HDD Capacity: Up to 16 TB for each HDD, maximum capacity may vary depending on environmental temperature

Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces

USB: Front panel: 2 × USB 2.0 | Rear panel: 1 × USB 3.0

Serial Interfaces: RS485 × 1, RS422 × 1, RS232 × 1

eSATA: 1

Power Supply: AC 100 ～ 240 V

Power Consumption: ≤ 45W without HDD

Working Temperature: -10°C to 55°C / 14°F to 131°F

Working Humidity: ≤ 90% RH, non-condensing

Height: 2U

Dimensions: 442.0 mm × 435.9 mm × 88.6 mm / 17.4" × 17.2" × 3.5"

Weight: ≤ 6.0 kg / 13.23 lb without HDD

GUI Language: 38 languages including English, Spanish, Spanish Latin America, Portuguese, French, German, Italian, Russian, Arabic, Korean, Japanese, and more

Certification: CE, FCC, UL, RoHS, WEEE

CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2

FCC: Part 15 Subpart B
