U7-OUTDOOR

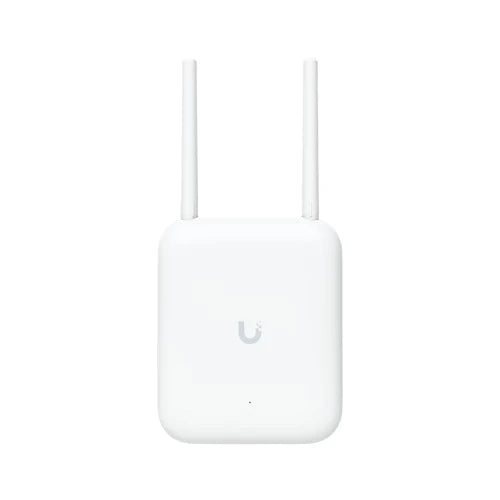

Ubiquiti U7 Outdoor: All-Weather WiFi 7 Access Point with Flexible Antenna System

In outdoor enterprise, campus, and public venue deployments, providing reliable wireless coverage requires adaptable RF pattern options and robust environmental protection. The Ubiquiti UniFi U7 Outdoor (U7-Outdoor) is a high-performance dual-band WiFi 7 access point engineered to deliver low latency, high capacity, and flexible long-range coverage in outdoor environments.

Dual-Band WiFi 7 Performance and Dual Antenna Flexibility

Powered by 802.11be WiFi 7 technology, the U7-Outdoor operates across 2.4 GHz and 5 GHz bands with 4 spatial streams (2x2 MU-MIMO per radio), achieving aggregate data rates up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz. It features a unique hybrid antenna system: an integrated high-gain directional super antenna providing up to 465 m² (5,000 ft²) of long-range open-space coverage, and software-switchable RP-SMA connectors paired with included external omni-directional antennas for balanced 360-degree coverage up to 160 m² (1,750 ft²).

Weatherproof Outdoor Enclosure and Versatile Mounting

Built to withstand harsh weather conditions, the U7-Outdoor is housed in an IPX6-rated UV-stabilized polycarbonate and aluminum alloy enclosure with a wind survivability rating of 74.6 N at 200 km/h. It includes versatile wall and pole mounting hardware, enabling seamless installation on building exteriors, masts, or utility poles.

High-Speed Uplink and Centralized UniFi Management

Featuring a 2.5 GbE RJ45 uplink port powered via Power over Ethernet (PoE+), the U7-Outdoor ensures maximum throughput without bottlenecks. Managed centrally via the UniFi Network application, it supports advanced features such as multi-link operation (MLO), guest traffic isolation, per-user rate limiting, and support for over 200 connected devices.
