U7-PRO

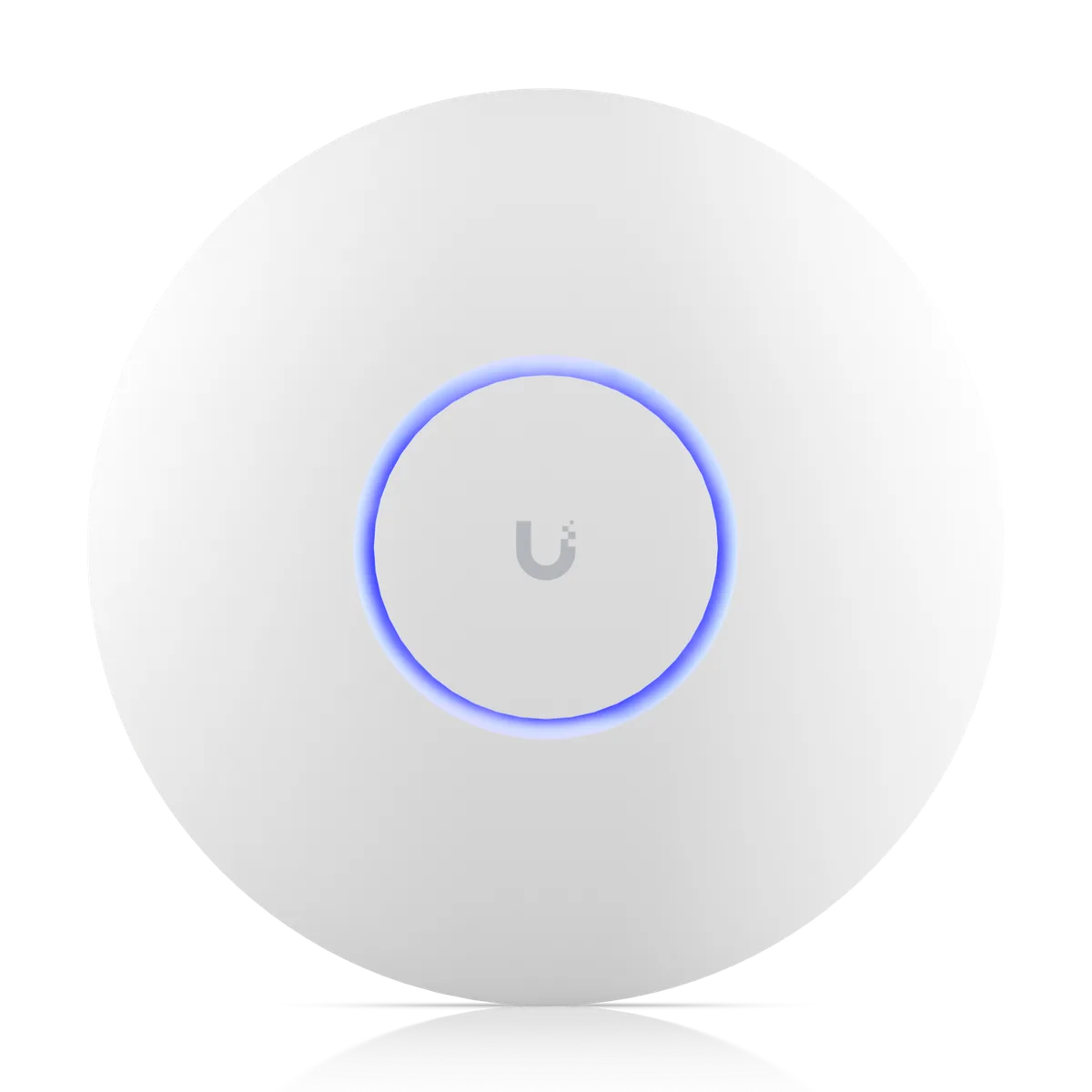

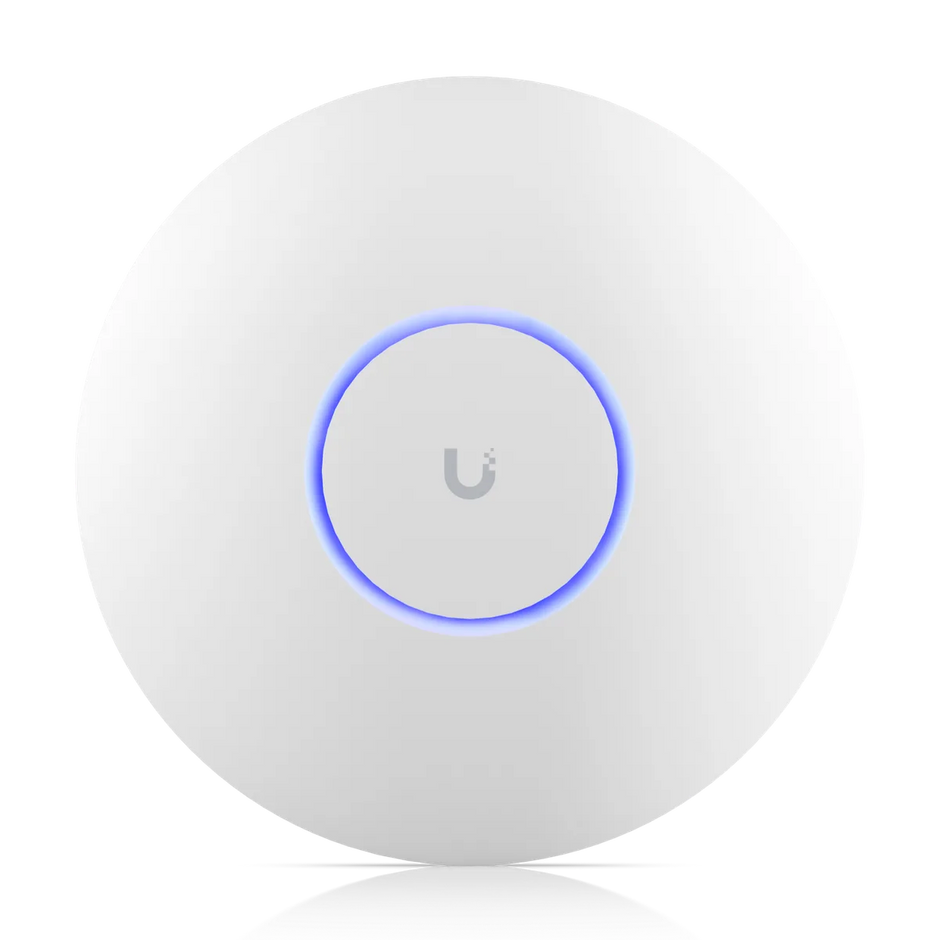

Ubiquiti U7 Pro: Tri-Band WiFi 7 Access Point for High-Density Environments

In modern corporate offices, educational facilities, and high-density enterprise environments, accommodating interference-free wireless connectivity and high-throughput multi-band networking is essential. The Ubiquiti UniFi U7 Pro (U7-Pro-US) is an advanced ceiling-mounted WiFi 7 access point engineered to deliver low-latency performance, high client capacity, and seamless coverage.

6-Stream Tri-Band WiFi 7 Performance

Powered by 802.11be WiFi 7 technology, the U7-Pro operates across three bands (2.4 GHz, 5 GHz, and 6 GHz) with 6 total spatial streams (2x2 MU-MIMO per radio). Utilizing ultra-wide 320 MHz channels on the 6 GHz spectrum, it achieves maximum data rates up to 5.7 Gbps on 6 GHz, 2.8 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz, delivering reliable coverage up to 140 m² (1,500 ft²) and supporting over 300 connected devices.

2.5 GbE Multi-Gigabit Uplink and Sleek Ceiling Mount

To prevent wired backhaul bottlenecks, the access point features a 2.5 GbE RJ45 Ethernet port that pairs with multi-gigabit switches. Designed with a compact 206 mm ceiling-mountable enclosure built from UV-stabilized polycarbonate and aluminum alloy, it includes a ceiling/wall mounting kit for clean, professional installation.

PoE+ Powering and Centralized UniFi Network Management

Operating via Power over Ethernet (PoE+) with a maximum power consumption of 21W, the U7-Pro integrates effortlessly into UniFi network ecosystems. Managed centrally using the UniFi Network application, it supports advanced enterprise capabilities such as Multi-Link Operation (MLO), Private Pre-Shared Keys (PPSK), zero-wait DFS, and advanced guest traffic isolation.
