U7-PRO-XGS

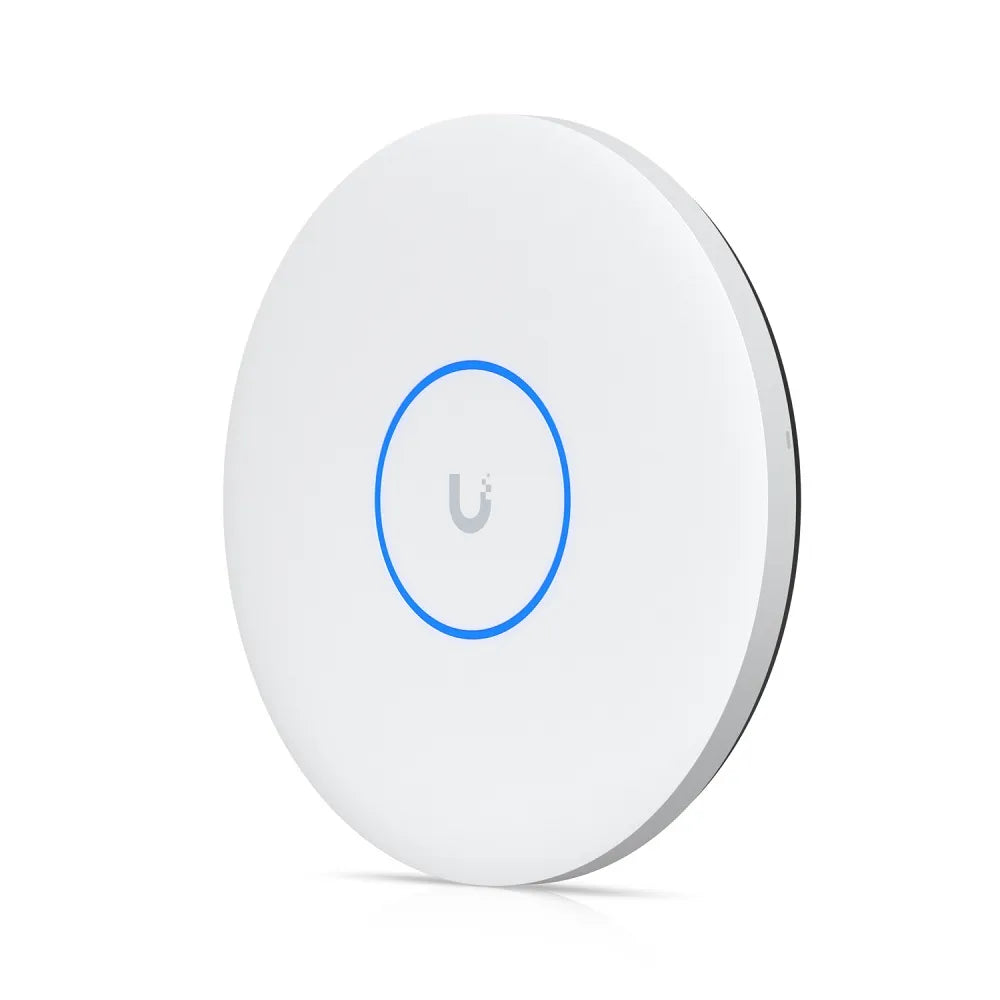

Ubiquiti U7 Pro XGS: High-Density WiFi 7 Access Point with 10 GbE Uplink

In high-density corporate offices, educational institutions, and large-scale enterprise environments, accommodating multi-gigabit throughput and demanding client capacities requires next-generation wireless performance. The Ubiquiti UniFi U7 Pro XGS (U7-Pro-XGS-US) is an advanced tri-band WiFi 7 access point engineered to deliver low-latency wireless networking, extended client density support, and high-bandwidth wired backhaul.

8-Stream Tri-Band WiFi 7 Performance

Utilizing 802.11be WiFi 7 technology, the U7-Pro-XGS features 8 total spatial streams (4x4 MU-MIMO on 5 GHz, 2x2 on 6 GHz, and 2x2 on 2.4 GHz). It achieves maximum data rates up to 5.8 Gbps on 6 GHz (BW320) and up to 8.6 Gbps on 5 GHz (BW240), providing expansive coverage up to 160 m² (1,750 ft²) and supporting over 500 concurrent client devices without bottlenecking.

Multi-Gigabit 10 GbE Uplink and Robust Physical Architecture

Equipped with a high-speed 10 GbE RJ45 Ethernet port, the access point eliminates backhaul congestion to leverage full multi-gigabit ISP connections and local server bandwidth. Built with a sleek next-generation industrial enclosure measuring 215 mm in diameter, it includes a Lite Mount bracket for effortless ceiling or wall installation using durable stainless steel and galvanized steel hardware.

Enterprise Power Management and Centralized UniFi Control

Powered via Power over Ethernet (PoE++) with a maximum power consumption of 29W, the U7-Pro-XGS integrates seamlessly into modern UniFi switch networks. Managed centrally through the UniFi Network application, it supports advanced features including zero-wait DFS, Band Steering, Private Pre-Shared Keys (PPSK), real-time spectral analysis, and complete guest network isolation.
