U7-PRO-XGS-B

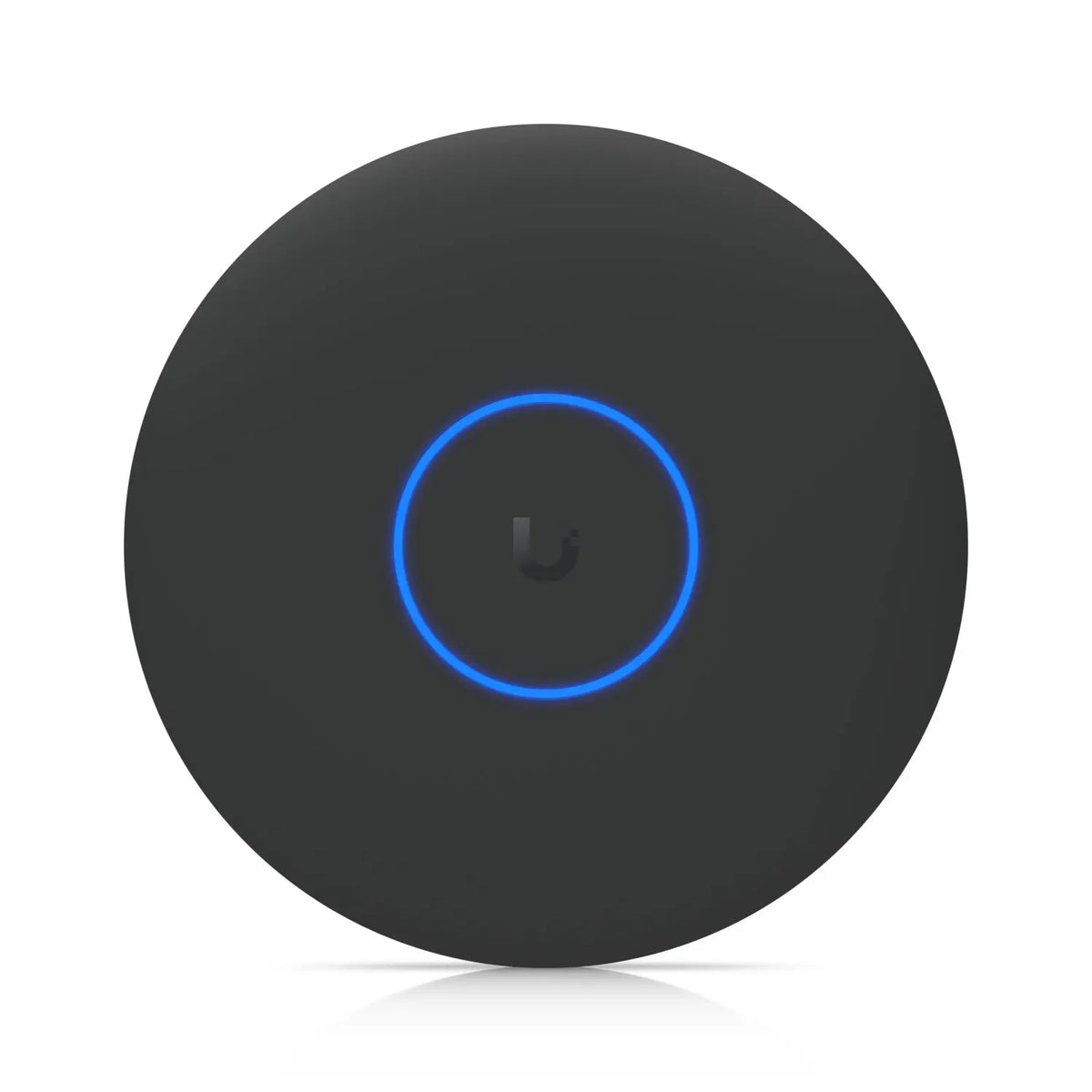

Ubiquiti U7 Pro XGS Black Edition: High-Density WiFi 7 Access Point with 10 GbE Uplink

In high-density corporate offices, upscale commercial venues, and modern enterprise environments where interior aesthetics and uncompromising multi-gigabit throughput are equally critical, the Ubiquiti UniFi U7 Pro XGS Black Edition (U7-Pro-XGS-B-US) delivers next-generation wireless performance in a striking matte black colorway.

8-Stream Tri-Band WiFi 7 Performance

Utilizing 802.11be WiFi 7 technology, the U7-Pro-XGS-B features 8 total spatial streams (4x4 MU-MIMO on 5 GHz, 2x2 on 6 GHz, and 2x2 on 2.4 GHz). It achieves maximum data rates up to 5.8 Gbps on 6 GHz (BW320) and up to 8.6 Gbps on 5 GHz (BW240), providing expansive coverage up to 160 m² (1,750 ft²) and supporting over 500 concurrent client devices without bottlenecking.

Multi-Gigabit 10 GbE Uplink and Robust Physical Architecture

Equipped with a high-speed 10 GbE RJ45 Ethernet port, the access point eliminates backhaul congestion to leverage full multi-gigabit ISP connections and local server bandwidth. Built with a sophisticated industrial enclosure measuring 215 mm in diameter in a dark finish, it includes a matching Lite Mount bracket for seamless ceiling or wall installation using durable stainless steel and galvanized steel hardware.

Enterprise Power Management and Centralized UniFi Control

Powered via Power over Ethernet (PoE++) with a maximum power consumption of 29W, the U7-Pro-XGS-B integrates seamlessly into modern UniFi switch networks. Managed centrally through the UniFi Network application, it supports advanced features including zero-wait DFS, Band Steering, Private Pre-Shared Keys (PPSK), real-time spectral analysis, and complete guest network isolation.
