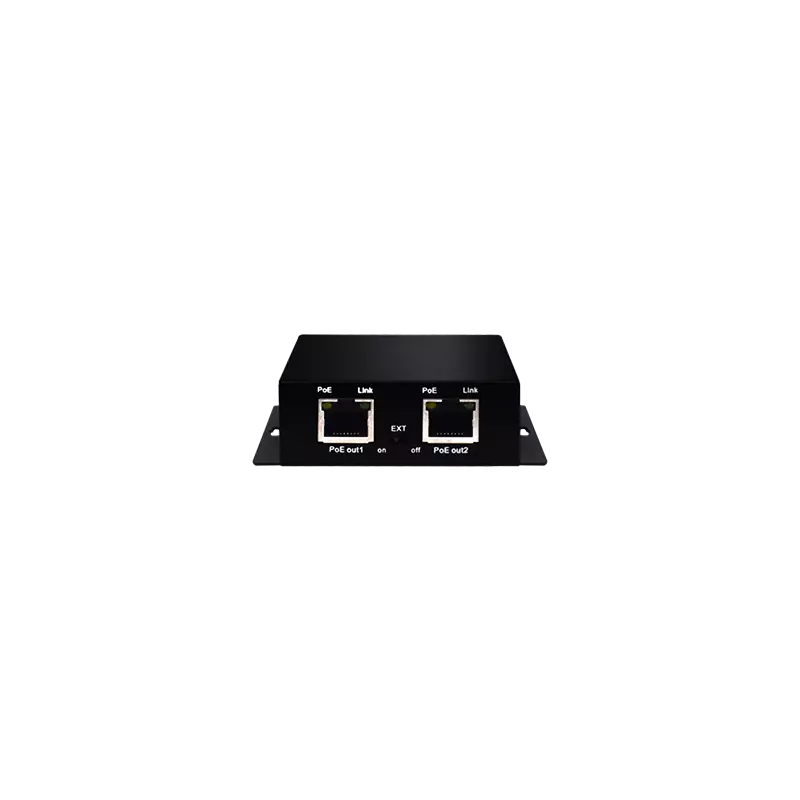

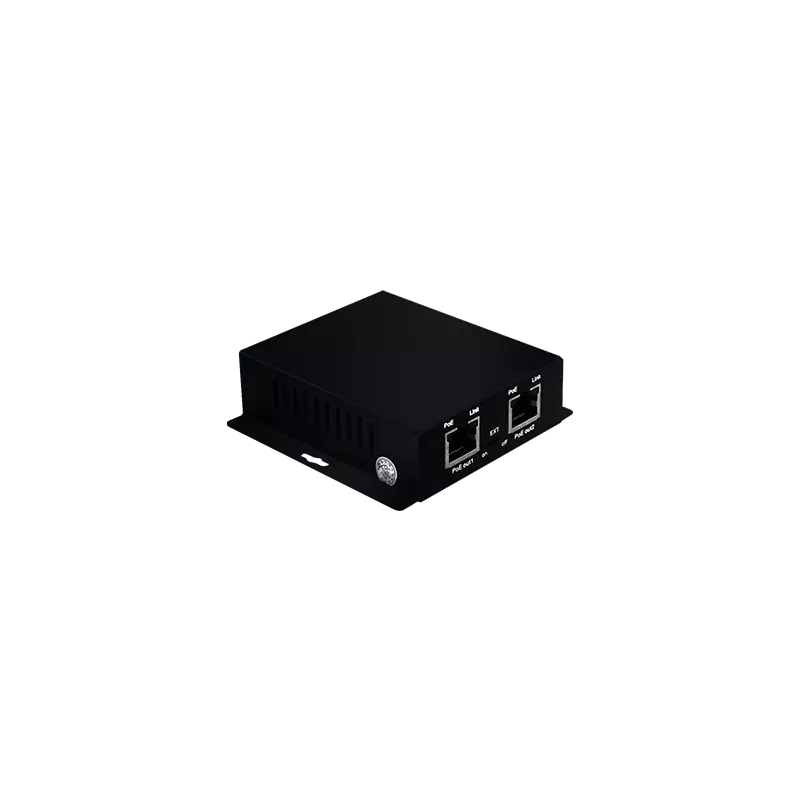

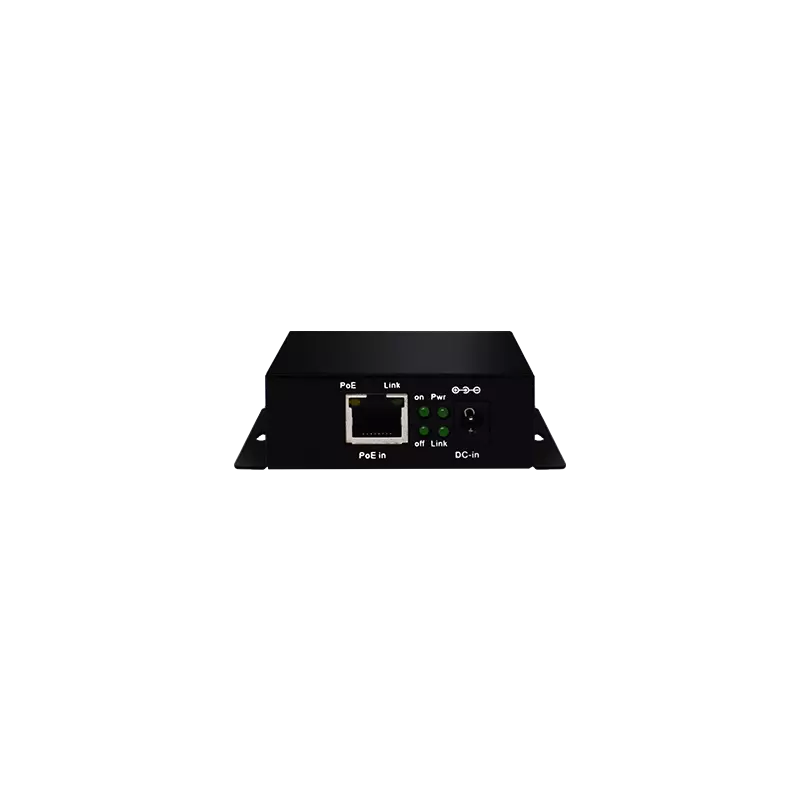

WI-PE31G : 2GE PoE Output + 1GE PoE Input Gigabit PoE Extender

WI-PE31G : 2GE PoE Output + 1GE PoE Input Gigabit PoE Extender

The WI-PE31G is a high-performance Gigabit PoE extender designed to expand PoE transmission distance and enhance network flexibility. With one Gigabit PoE input and two Gigabit PoE outputs, it supports IEEE 802.3af/at standards, delivering up to 30W of power per port. It provides reliable data and power transmission up to 250 meters using the built-in DIP switch for long-range operation. This plug-and-play extender ensures a seamless, cost-effective solution for extending network coverage in professional environments.

Product Features

• 1 × 1000Mbps PoE input port (IEEE 802.3af/at, 30W)
• 2 × 1000Mbps PoE output ports with 30W per port
• Supports 250-meter long-range PoE transmission via DIP switch
• Full Gigabit ports for high-speed, wire-speed switching and jumbo frame transmission
• DC input 48–55V for flexible power options
• Plug and play, self-adaptive installation with no configuration required
• Compact, fanless design for silent and stable operatio

The WI-PE31G provides a reliable and cost-effective solution for extending PoE networks while maintaining Gigabit speeds and high efficiency. Its long-range transmission capability, dual PoE output ports, and plug-and-play setup make it ideal for professional surveillance and communication systems.
