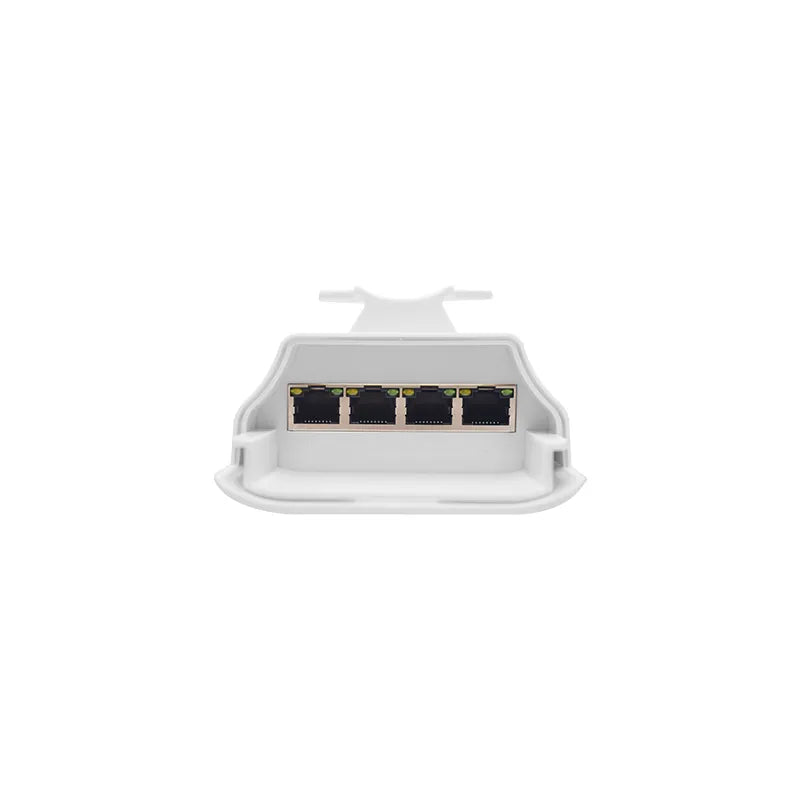

WI-PE51E : 4-Port PoE Extender with 60W Input and Long-Distance Mode

WI-PE51E : 4-Port PoE Extender with 60W Input and Long-Distance Mode

The WI-PE51E is a high-performance PoE extender designed to expand your Power over Ethernet network easily and efficiently. Featuring one 100Mbps PoE input port (IEEE 802.3bt 60W) and four 100Mbps PoE output ports (IEEE 802.3af/at 30W each), this device enables seamless power and data distribution across multiple network devices such as IP cameras, access points, and VoIP phones.
It supports DC input from 37V to 57V, offers an additional 100Mbps Ethernet uplink port, and includes extend (250m) and VLAN isolation modes for flexible deployment in complex environments. Designed for desktop installation, this unit requires no configuration—simply plug and play for instant expansion.

Main Features

• 1 × 100Mbps PoE input port compliant with IEEE 802.3bt (60W)
• 4 × 100Mbps PoE output ports compliant with IEEE 802.3af/at (30W each)
• 1 × 100Mbps Ethernet uplink port for data extension
• DC input voltage: 37V–57V
• Supports Extend Mode for up to 250 meters PoE transmission distance
• Supports VLAN Mode for secure port isolation
• Plug and Play operation – no configuration required
• Desktop mount design for flexible installation
• Auto MDI/MDI-X and auto-negotiation supported on all RJ-45 ports
• IEEE 802.3af/at/bt compliance ensures wide compatibility with PoE devices
• Stable power delivery up to 60W total PoE input
• Fanless design for silent and reliable performance
• Compact and durable housing for professional network use
• Operating temperature: -10°C to +55°C
• Certified for CE, FCC, and RoHS standards

A reliable and cost-effective solution to expand PoE connectivity, the WI-PE51E offers four PoE outputs, one PoE input, and one uplink Ethernet port in a compact, durable design. With IEEE 802.3af/at/bt compatibility, port isolation, and long-distance mode, it delivers flexibility, safety, and power efficiency for modern surveillance and networking systems.
