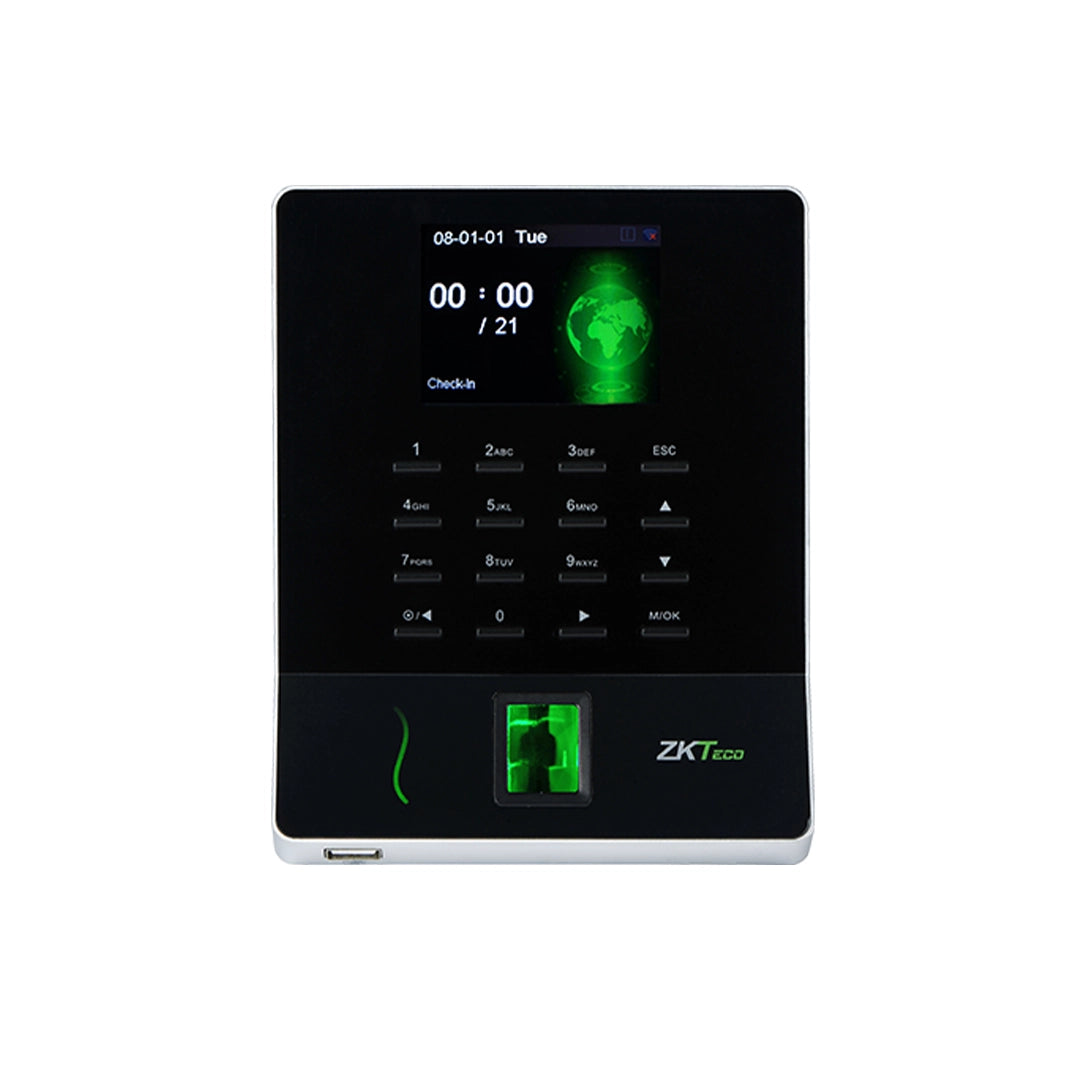

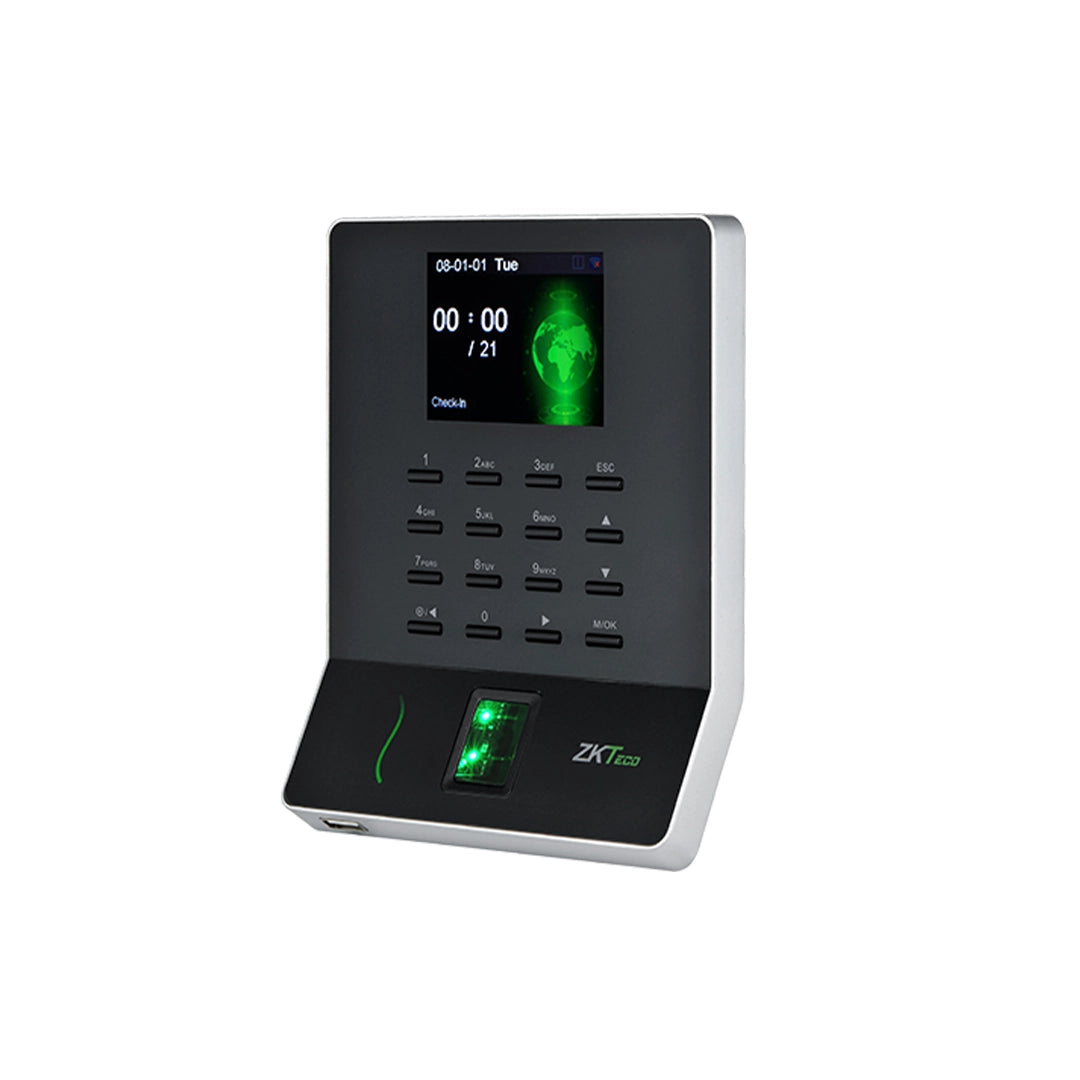

WL20 - Fingerprint Time & Attendance Terminal with Wi-Fi module.

Overview

Wi-Fi-enabled fingerprint time and attendance terminal with advanced recognition under strong light, wet, or rough fingers. Offers stable performance, built-in software, and elegant design for modern workplaces.

Detailed Product Description

Model: WL20
Type: Wi-Fi Fingerprint Time & Attendance Terminal

Key Features

• Integrated Wi-Fi Connectivity: Eliminates the need for Ethernet cables, allowing simple and flexible network setup.
• High-Precision Fingerprint Recognition: Ensures reliable verification even under strong light or with dry, wet, or rough fingers.
• Power-Saving Infrared Sensor: Automatically activates when a user approaches and turns off to conserve energy.
• Built-in SSR Excel Software: Includes Shift and Report management, supporting self-service queries and automatic status switching.
• Advanced Fingerprint Algorithms: Equipped with ZKFinger V13.0 (default) or V10.0 for optimized speed and accuracy.
• Large Storage Capacity: Supports up to 1,000 fingerprints (1,500 without SSR) and 50,000 attendance records.
• Accurate Identification: Meets high standards with 0.0001% False Acceptance Rate (FAR) and 0.912% False Rejection Rate (FRR).
• Flexible Communication Options: Includes Wi-Fi and USB host connectivity for data transfer and remote management.
• User-Friendly Interface: Features a 2.8-inch TFT color display with intuitive menus and T9 keypad for user ID input.
• Optional ADMS Support: Enables centralized management and real-time data synchronization when required.
• Reliable Power and Performance: Operates on DC 5V 0.8A with stable performance across 0 °C – 45 °C temperature range.
• Compact and Elegant Design: Dimensions of 165 × 133 × 21 mm make it ideal for modern office environments.
