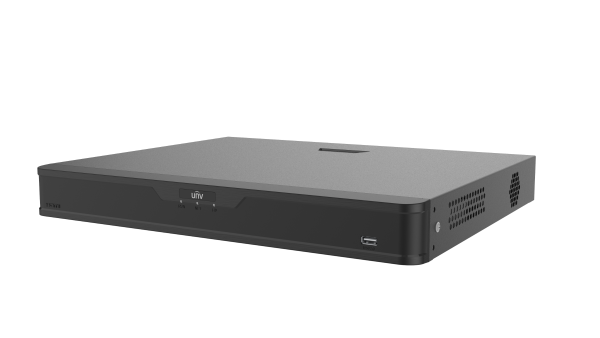

Upgrade your security infrastructure with the XVR302-16U3. This powerful 16-channel DVR offers 4K resolution and supports five different camera technologies in one device.
Increments of 1
Minimum of 1
Maximum of
3Low stock
3In stock, ready to ship
Sale price
$515.71
-100%
Regular price
Regular price
$515.71
Unit price
per
Upgrade your security infrastructure with the XVR302-16U3. This powerful 16-channel DVR offers 4K resolution and supports five different camera technologies in one device.
Sale price
$515.71
Regular price
Regular price
$515.71
Unit price
per
Couldn't load pickup availability
Upgrade your security infrastructure with the XVR302-16U3. This powerful 16-channel DVR offers 4K resolution and supports five different camera technologies in one device. Whether you are using legacy analog cameras or modern IP systems, this XVR provides the flexibility and reliability your business needs.
- 4K Visuals: Experience superior detail with simultaneous HDMI (4K) and VGA outputs.
- Simplified Audio: No extra wiring needed—get audio directly through the coaxial cable.
- Long-Range Transmission: Reliable signal stability over long distances via coaxial cabling.
- Future-Proof: Advanced H.265 compression ensures you save more video in less space.
Video & Audio Input
Analog Video Input: 16-ch, BNC interface
IP Video Input: 16-ch (Up to 32-ch after conversion)
Supported Camera Types: TVI/AHD/CVI: 8MP@15fps, 5MP@20fps, 4MP@30fps | CVBS Support
Audio Input: 16-ch via Coaxial (TVI) | 4-ch RCA
Video & Audio Output
HDMI Output: Up to 4K (3840 x 2160) @ 30Hz
VGA Output: Up to 1920 x 1080 @ 60Hz
Audio Output: 1-ch, RCA
Two-way Audio: 1-ch, RCA (Using existing audio I/O)
Recording & Decoding
Recording Resolution: 8MP / 5MP / 4MP / 1080P / 720P / D1
Main Stream Frame Rate: 8MP@8fps | 5MP@12fps | 4MP@15fps | 1080P@25fps
Decoding Capability: Analog: 8 x 8MP@8fps | IP: 2 x 8MP@30fps
Smart & AI Functions
XVR Smart Functions: 16-ch UMD | 8-ch SIP | 2-ch Face Detection
Alarms: Motion Detection, IP Conflict, Disk Abnormal, Illegal Access
Physical & General
Storage: 2 SATA interfaces (Up to 16TB per HDD)
Dimensions & Weight: 380 x 326 x 53 mm | ≤ 2.3 Kg (5.07lb)
Power Supply: DC 12V / 5A
Certifications: CE, FCC, UL, RoHS, WEEE
